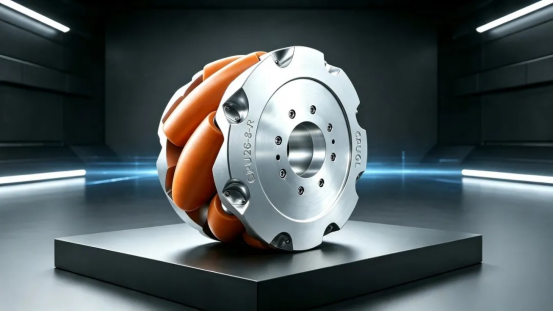

How do you select the right Mecanum wheel? Why do some installations result in drifting, deformation under heavy loads, or premature delamination within just two months?In reality, 90% of Mecanum wheel failures are not caused by product quality, but by a non-standardized sizing process.
Today, XiBeiYou introduces our Standardized 8-Step Mecanum Wheel Sizing System. From load calculation and structural design to suspension matching, mounting configurations, roller counts, and powertrain integration, this closed-loop system is engineered to completely eliminate sizing errors,equipment incompatibility, and costly post-installation maintenance.
Step 1: Assess Load Capacity– Never Guess Based on Size
A common mistake in wheel selection is prioritizing wheel size or price over load capacity. For industrial Mecanum wheels, load capacity is the foundational metric; all parameters,structures, and dimensions must be derived from it.
Industrial applications strictly prohibit relying on theoretical no-load ratings. Actual operating conditions must be factored in. Use this universal industrial formula:Single Wheel Load = (Vehicle Weight + Max Payload) ÷ 4 × Safety Factor (1.2 to 1.5)
Note: For applications involving frequent start/stop cycles, omnidirectional rotation, lateral translation, or incline operations, impact loads are significantly higher. We strongly recommend using the maximum 1.5x safety factor to prevent long-term deformation, aging, and structural failure.
Step 2: Evaluate Powertrain Integration
The stability, speed, and climbing capability of a Mecanum wheel system depend entirely on the powertrain match. This step requires a comprehensive assessment of your specific operating conditions:travel speed, start/stop acceleration, gradient, daily operating hours, and continuous duty cycle. Based on these parameters, precisely match the gear ratio, torque, and power of the motor and gearbox.
XiBeiYou offers three flexible powertrain configuration models: customer-sourced, XiBeiYou standard configuration, or customer-specified premium brands. This ensures compatibility for both standardized mass production and bespoke custom projects, from equipment retrofits to high-end R&D.
Step 3: Define the Structural Architecture
Sizing confusion often arises from failing to distinguish between standalone Mecanum wheels and integrated wheel assemblies. The core question to ask is: Does the equipment require an integrated suspension system?
No Suspension Required: If you are only replacing standalone wheels, the equipment has built-in shock absorption, or the operating environment is exceptionally smooth, skip to Step 5 (Mounting Configuration).
Suspension Required: If operating on uneven floors, under frequent start/stop conditions, under heavy loads requiring shock absorption, or in high-precision docking scenarios, a dedicated suspension mechanism is mandatory. Proceed to Step 4.
Step 4: Select the Right Suspension for the Application

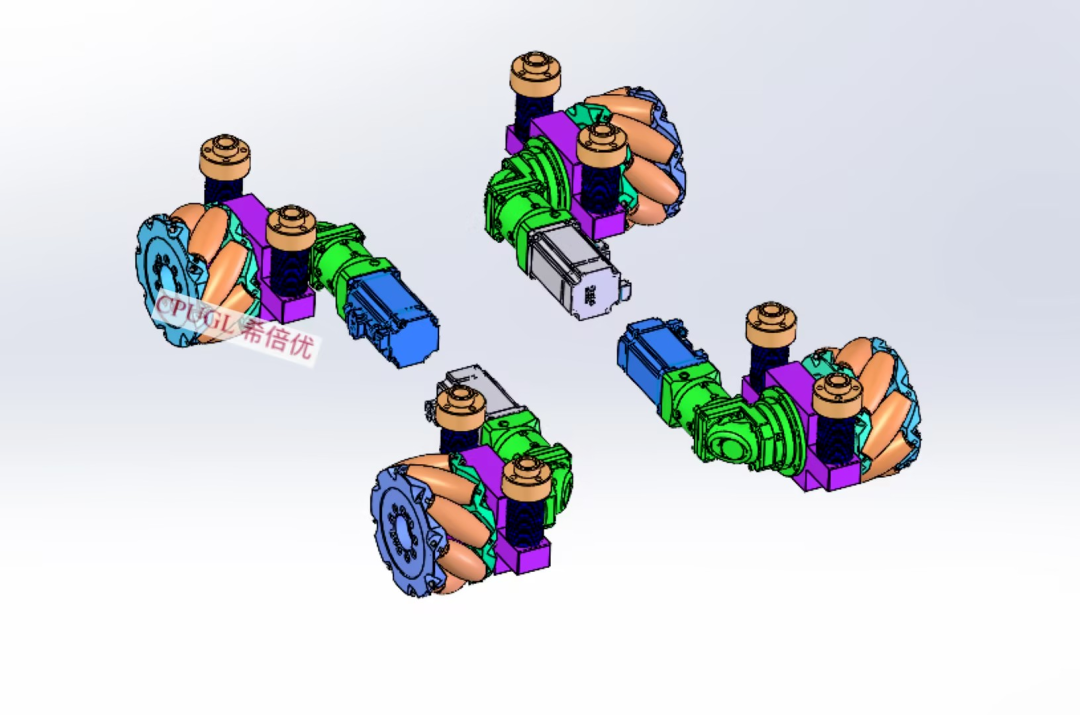

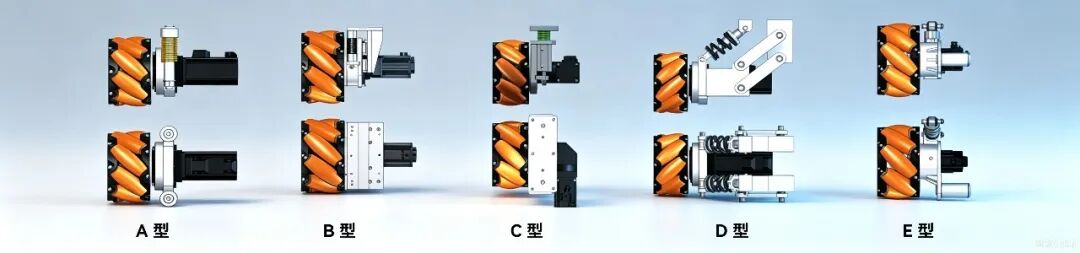

The suspension structure directly dictates shock absorption, operational balance, and application suitability. XiBeiYou offers five standardized suspension types to cover all industrial scenarios:
Type A (Direct Drive + Coil Spring): Compact and cost-effective. Ideal for 6-8 inch small-diameter wheels and light-duty precision equipment.

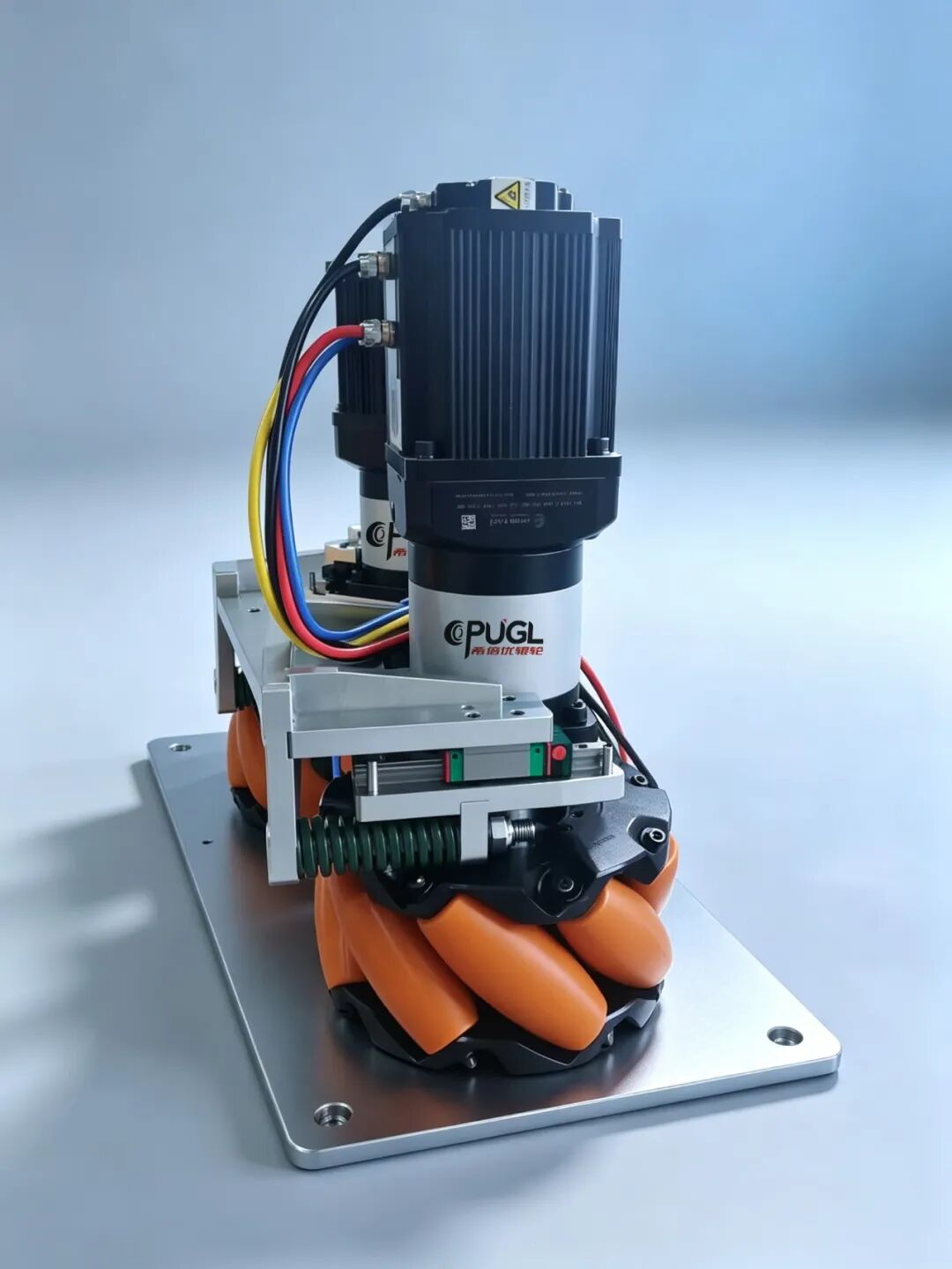

Type B (Linear Guide + Coil Spring): Exceptional balance and high versatility. The optimal choice for most light, medium, and medium-heavy duty applications.
Type C (Right-Angle Gearbox Drive): Reduced lateral footprint. Specifically designed for narrow vehicles and space-constrained light/medium-duty equipment.
Type D (Multi-Link + Hydraulic Spring): Adjustable damping stiffness. Suitable for all Mecanum wheel sizes and highly effective in complex, uneven terrain.
Type E (Single-Point Hydraulic Buffer): Superior shock absorption. Engineered specifically for medium-to-heavy duty, high-intensity continuous operations.
Type N (No Suspension): Standalone wheel replacement only. Perfect for retrofit projects requiring no suspension assembly modifications.
Step5: Choose the Drive Connection–Balancing Precision and Mounting
Based on precision requirements and mounting constraints,choose one of two standard drive interfaces supported by XiBeiYou’s entire Mecanum wheel range:
Keyed Shaft(Z):Simple,easy to disassemble,and highly versatile. Best for applications with ample mounting space and standard precision requirements.
Flange Mount(F):Superior rigidity,high concentricity, stable assembly precision,and compact design.
The preferred choice for high-precision station docking,space-constrained environments,and high-frequency mass production in smart manufacturing.
Step 6: Verify Wheel Orientation– Ensuring Omnidirectional Kinematics
Mecanum wheels are strictly left/right specific. They must be paired correctly to achieve straight travel,lateral movement, diagonal movement, and 360° zero-radius turning:
L (Left Wheel): Forward rotation results in left-forward movement.
R(Right Wheel): Forward rotation results in right-forward movement.
Equipment assembly must strictly fo low the symmetrical L/R arrangement principle, paired with standard
X-type or O-type mounting configurations, to guarantee seamless omnidirectional mobility.
Step 7: Determine Roller Count– Balancing Stability and Load
For the same wheel size, choosing between 8-roller and 9-roller configurations directly impacts operational experience and service life:
8-Roller Mecanum Wheels: Superior structural load-bearing capacity and impact resistance. Prioritized for heavy-duty, high-intensity continuous operations.
9-Roller Mecanum Wheels: Denser roller arrangement for enhanced smoothness, lower noise, and higher positional accuracy. Prioritized for precision docking, high-frequency micro-adjustments, and low-noise light/medium-duty applications.
Step 8: Confirm Dimensions– Standard & Custom Compatibility
The final step is verifying critical installation dimensions: wheel diameter, width, shaft bore, and flange bolt patterns.
XiBeiYou’s CPUGL series offers a comprehensive standard range from 6 to 28 inches, covering everything from light precision AGVs to ultra-heavy-duty platforms. If your equipment chassis requires non-standard dimensions, there is no need for secondary drilling or modifications. Simply contact XiBeiYou engineers for a customized, 1-on-1 adaptation solution.
Unlike the fragmented and unstandardized sizing methods common in the industry, XiBeiYou’s comprehensive standardized sizing system ensures that Mecanum wheel selection is highly efficient, precise, and error-free, reflecting the true professionalism and reliability of an industrial-grade brand.
Let’s Optimize Your Setup
What specific Mecanum wheel model is currently adapted to your equipment’s operating conditions?
Leave a comment below or contact us directly with your sizing parameters. Our engineering team will provide a complimentary technical review, precise error-checking, and a 1-on-1 optimized selection plan tailored to your needs!
